Frontier Inference ClustersFrontier Inference Clusters

We co-design chips, racks, software, and manufacturing methods so frontier models can run with best-in-class throughput, latency, cost, and power efficiency for both prefill and decode workloads.

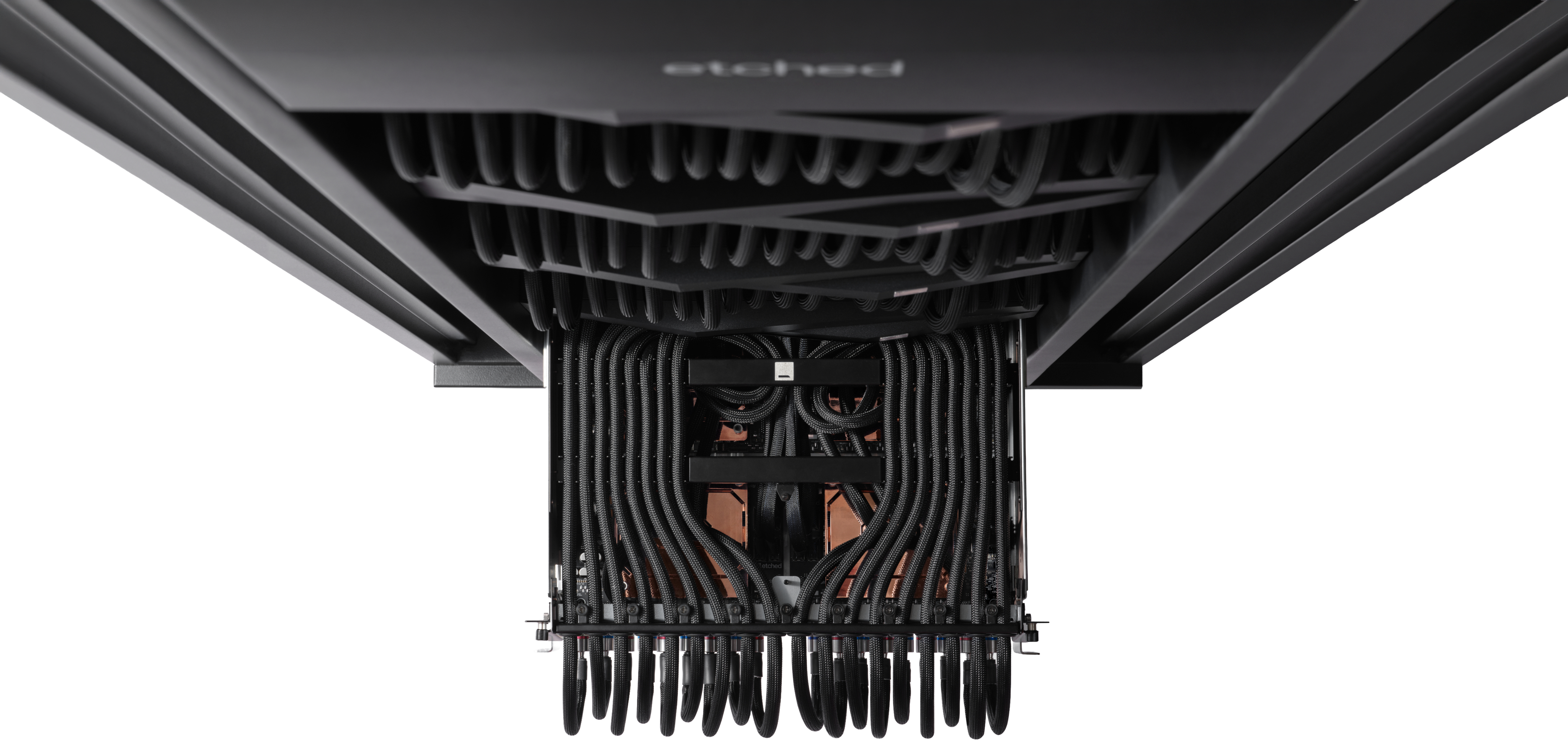

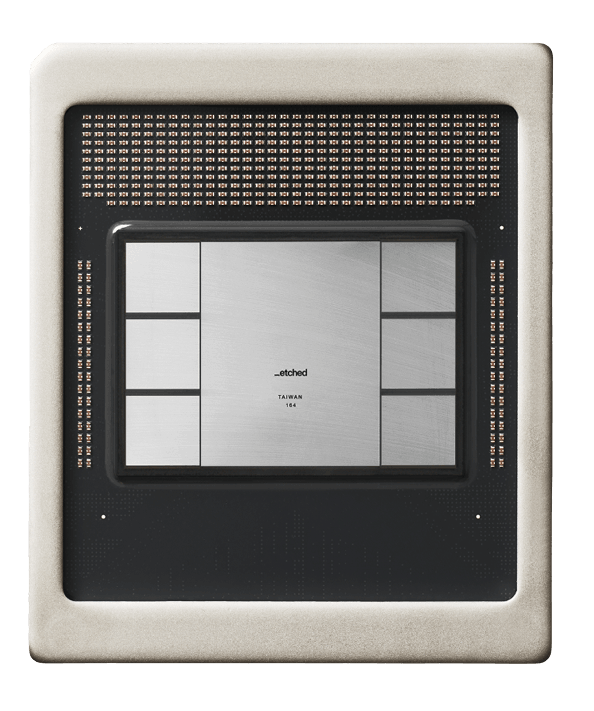

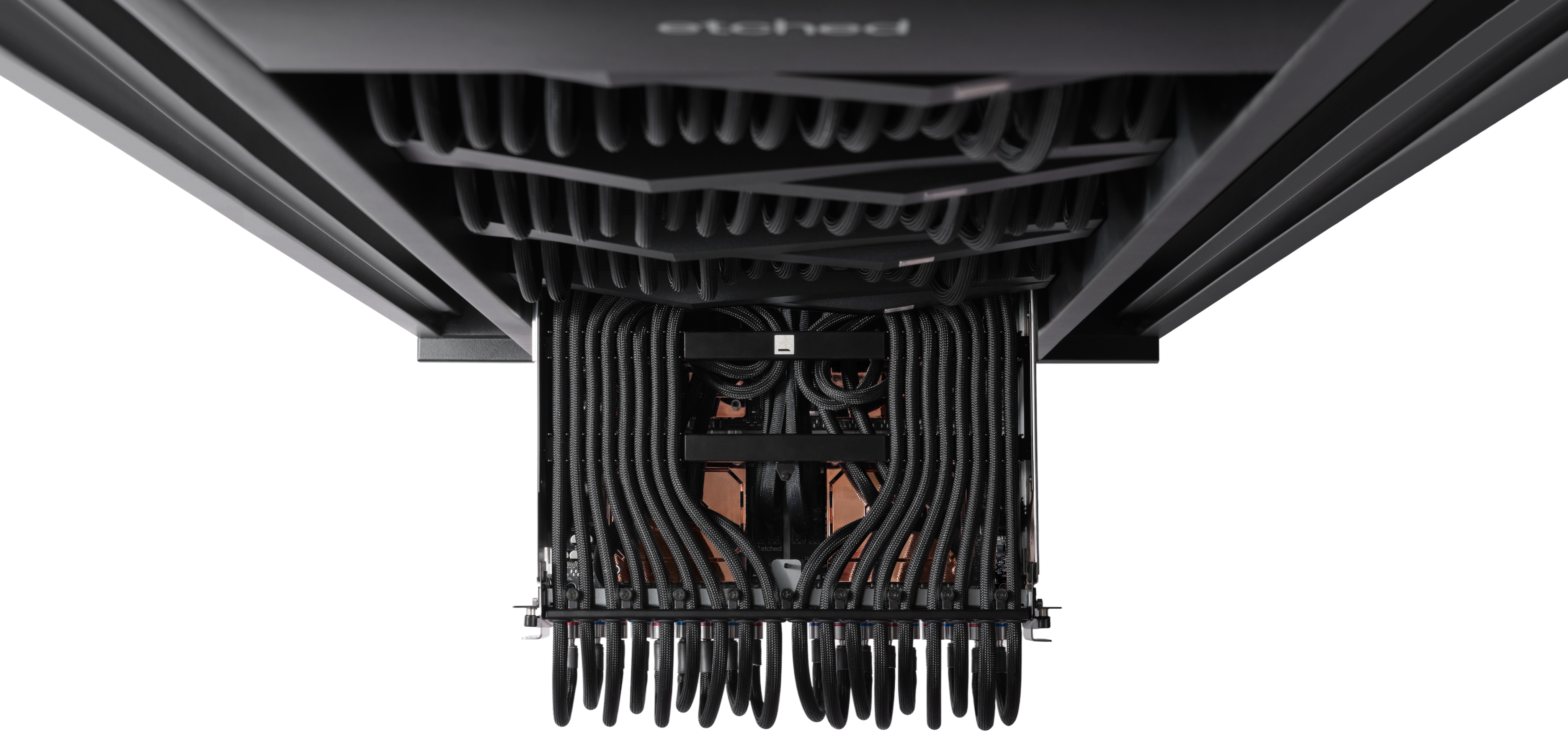

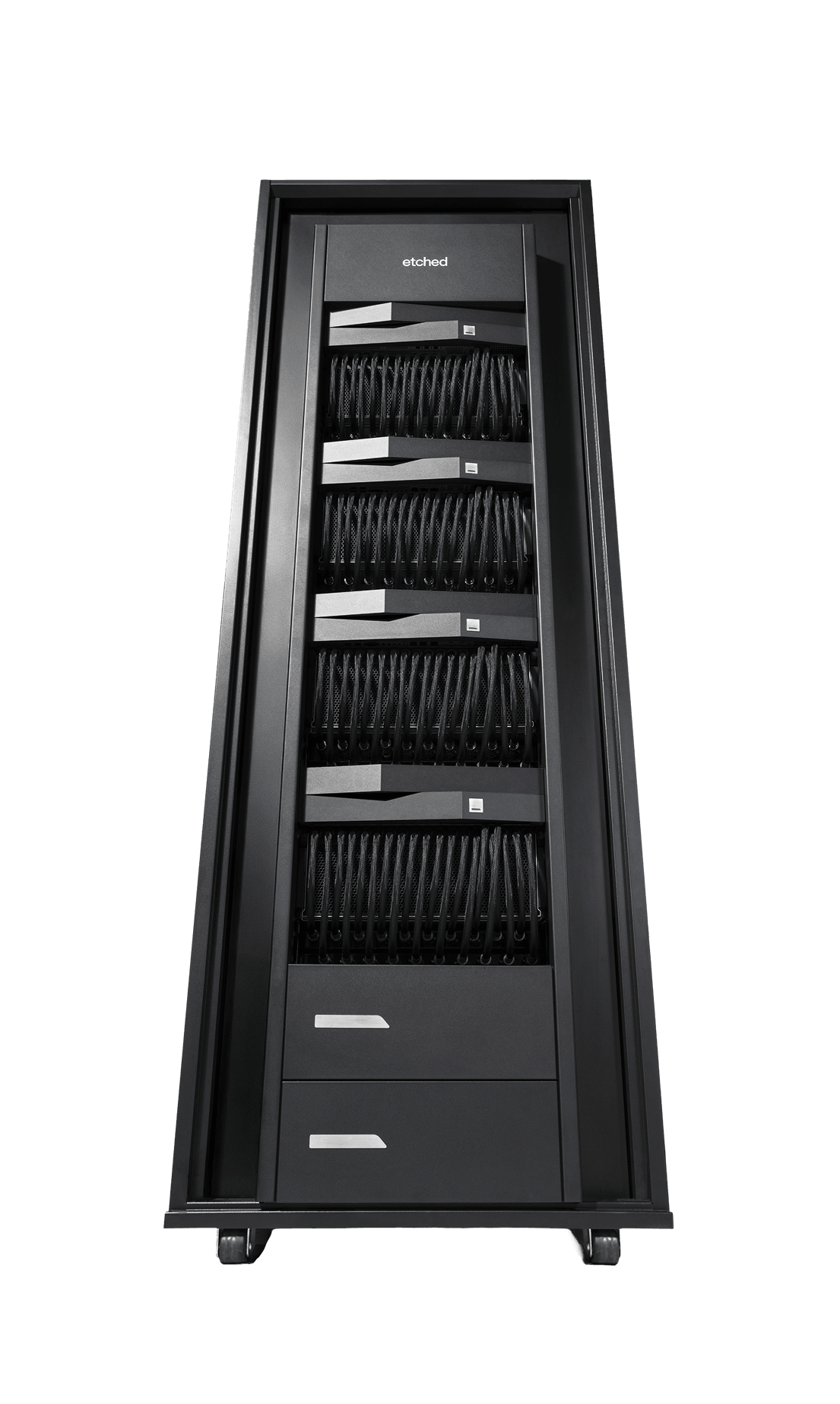

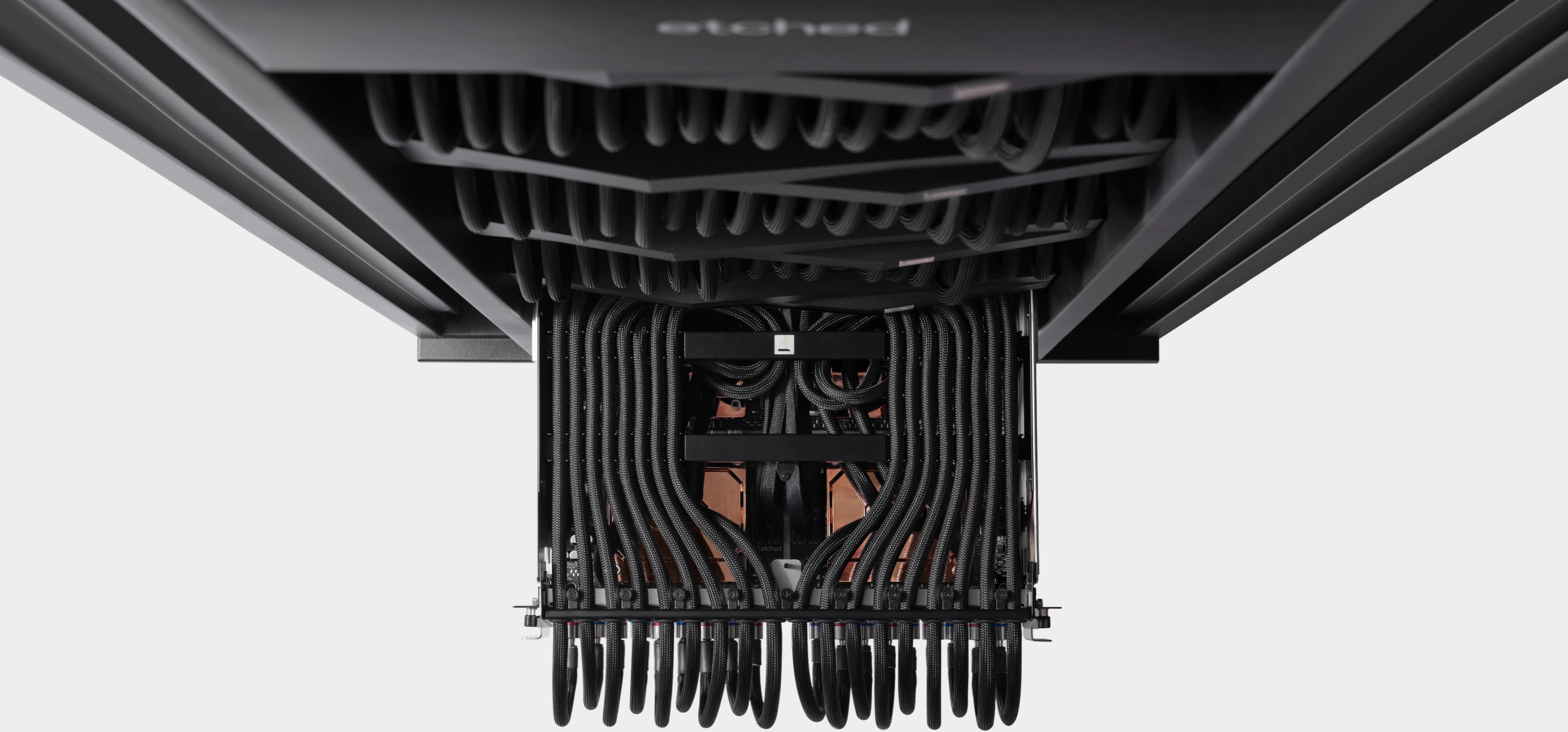

Earlier this year our A0 silicon came back from TSMC N4P, and today we are busy validating our first rack-scale product with customers to fulfill $1B in demand.

We're a team of 400+ engineers from NVIDIA, Google TPUs, Broadcom, SK Hynix, TSMC, and more. We've raised $800M across four unannounced financings, including a strategic investment from VentureTech Alliance. We're excited to deepen our partnership with the world's leading semiconductor manufacturer.

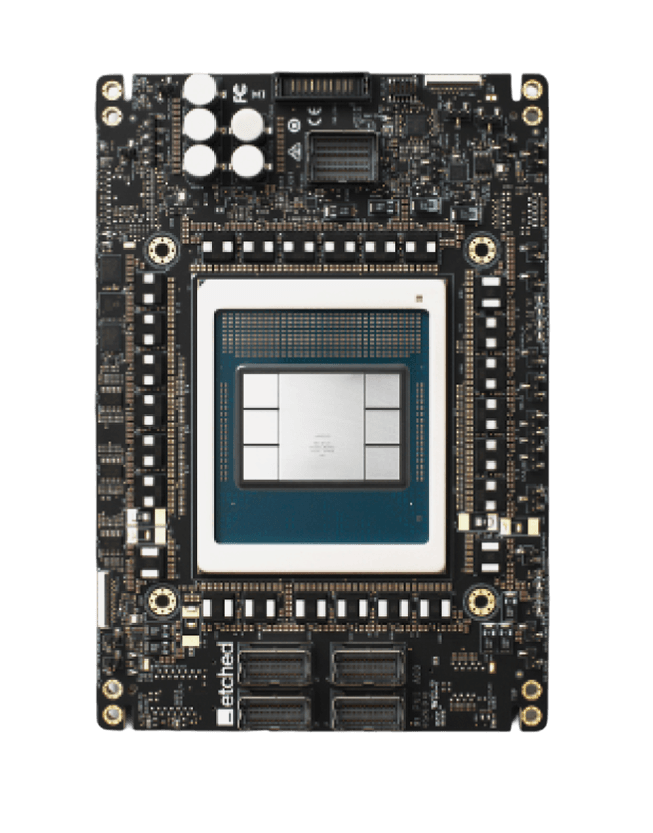

Our inference systems are built to push the entire pareto curve on frontier models, including many-trillion-parameter MoEs, long context, and agentic workloads. This required intense co-design, from new chips, packages, PCBs, cold plates, interconnects, and more. Today, we're sharing two breakthroughs to make this happen:

Low Voltage Inference (LVI) for high throughput workloads

Today, AI chips can't scale FLOPs without thermal throttling. As FLOPs utilization increases, AI chips draw more power and downregulate clock speed. This often results in sustained inference throughput under half of Peak FLOPs.

We've designed a new architecture to run our chip's math blocks at under half the voltage of most AI chips. This enables multiple times the FLOPs density of AI chips today. We can run trillion-parameter sparse MoEs at 80%+ Peak FLOPs without thermal throttling.

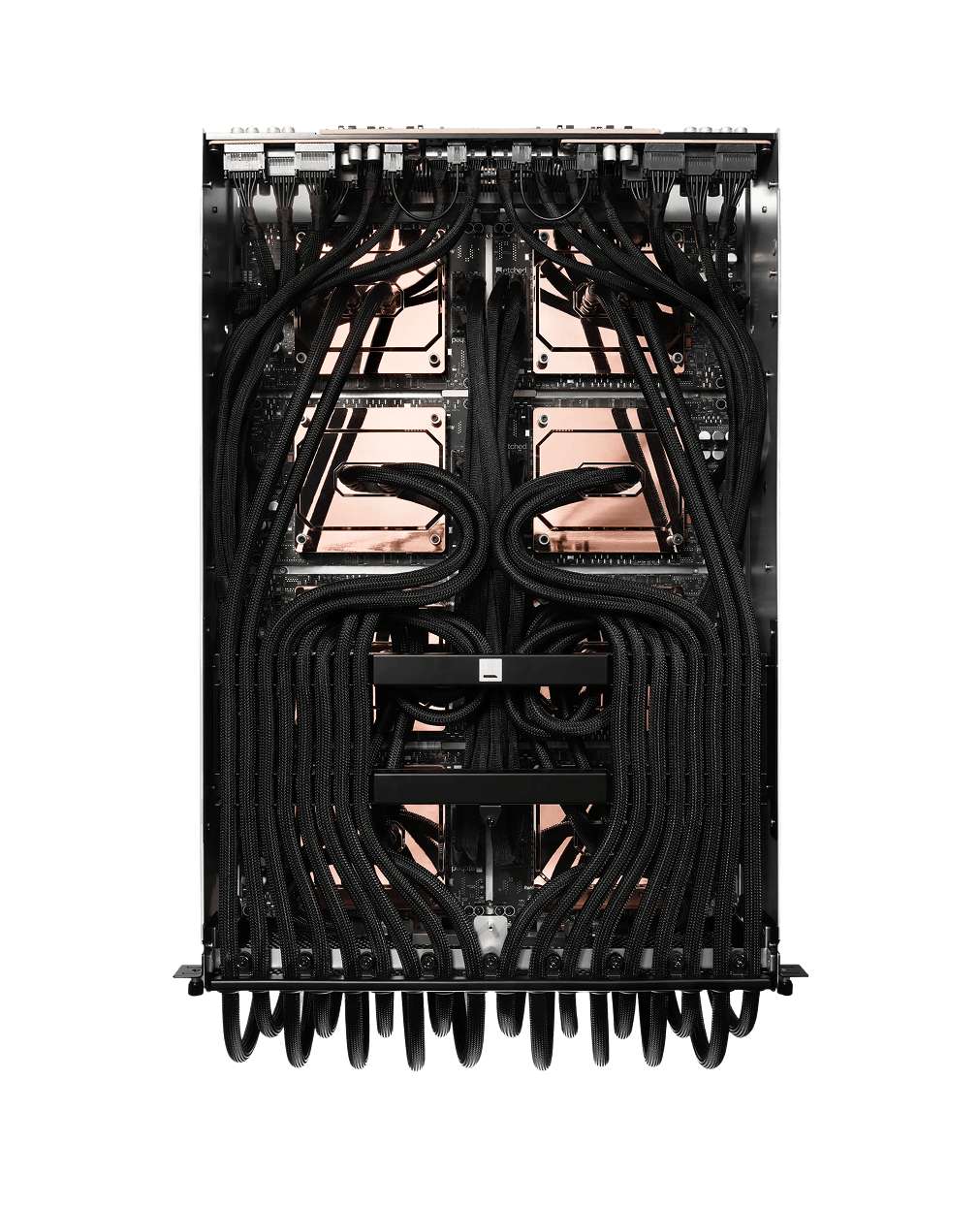

Running LVI requires co-designing the entire cluster from the transistor to the token: new splittable math arrays, circuit techniques, novel tiling and scheduling algorithms, power delivery networks, VRM architectures, advanced packaging, cold plate designs, and more.

Cluster Scale Memory (CSM) for low-latency workloads

Today's AI chips using HBM can't achieve SRAM-level decode speeds due to memory subsystem and interconnect bottlenecks. SRAM-only chips have lower FLOPs density and memory capacity, sacrificing throughput.

We created a much lower-latency shared memory pool across our scale-up domain. We use a proprietary ultra-low-latency, high-bandwidth interconnect to enable dramatically faster memory access across chips.

Our HBM/SRAM hybrid design solves both memory capacity and mem2mem latency, enabling high throughput and interactivity simultaneously. CSM improves latency and avoids today's cost, reliability, yield, thermal, and compute tradeoffs of SRAM-only chips, 3D DRAM chips, or optics.

We've made co-design decisions hand-in-hand with leading AI companies, cloud providers, and hyperscalers. We've tested racks in representative data center deployments, run terabytes of production traffic patterns through our simulator, and had dozens of engineers live overseas for months to co-design deeply with our supply-chain partners. If this sounds exciting, you should join us.

Early customer tests show us achieving SOTA throughput, latency, and power efficiency on inference workloads. We'll be sharing more updates on our performance and roadmap this summer.

Our first racks ship this summer, and we've kicked off production to fulfill over $1B in customer contracts. To enable 24/7 engineering cycles, we've opened a Taiwan factory and built a data center, test house, and NPI prototyping lab in our San Jose office.

We are vertically integrated to get to Gigawatt scale as quickly as possible. Math block designers sit next to inference engineers, thermal experts next to GSMs.
